The entity-relationship model

The entity-relationship model, as represented in the relational database structure, attempts to model the real-world entities that court interpreters deal with in running their office: contract interpreters, staff interpreters, judges, languages, places, types of proceedings, users (of the application), and more generally, people who contact the Interpreters to request services.

Like the real world, the entity-relationship model of InterpretersOffice is complex.

InterpretersOffice is intended for use with MySQL or MariaDB for production, but also includes a suite of tests that run against SQLite3. The database consists of the following tables, most of which are mapped to Doctrine entity classes:


    MariaDB [office]> show tables;
    +------------------------+
    | Tables_in_office       |
    +------------------------+
    | anonymous_judges       |
    | app_event_log          |
    | banned                 |
    | cancellation_reasons   |
    | category               |
    | clerks_judges          |
    | court_closings         |
    | defendant_names        |
    | defendants_events      |
    | defendants_requests    |
    | docket_annotations     |
    | event_categories       |
    | event_types            |
    | events                 |
    | hats                   |
    | holidays               |
    | interpreters           |
    | interpreters_events    |
    | interpreters_languages |
    | judge_flavors          |
    | judges                 |
    | language_credentials   |
    | languages              |
    | location_types         |
    | locations              |
    | motd                   |
    | motw                   |
    | people                 |
    | requests               |
    | roles                  |
    | rotation_substitutions |
    | rotations              |
    | task_rotation_members  |
    | tasks                  |
    | users                  |
    | verification_tokens    |
    | view_locations         |
    +------------------------+



The number and complexity of the relationships makes it difficult to diagram, but one we have attempted to create with the online diagram tool provided by dbdiagram.io shows most of the entity relationships involved the InterpretersOffice’s core functions.

The events table

The InterpretersOffice\Entity\Event entity is central; it represents an event that requires the services of one or more court interpreters. The core of InterpretersOffice is CRUD operations on these entities. It is also the most complex entity, with several attributes that are entities unto themselves.


CREATE TABLE `events` (
    `id` mediumint(8) unsigned NOT NULL AUTO_INCREMENT,
    `language_id` smallint(5) unsigned NOT NULL,
    `judge_id` smallint(5) unsigned DEFAULT NULL,
    `submitter_id` smallint(5) unsigned DEFAULT NULL,
    `location_id` smallint(5) unsigned DEFAULT NULL,
    `date` date NOT NULL,
    `time` time DEFAULT NULL,
    `end_time` time DEFAULT NULL,
    `docket` varchar(15) COLLATE utf8_unicode_ci NOT NULL DEFAULT '',
    `comments` varchar(600) COLLATE utf8_unicode_ci NOT NULL DEFAULT '',
    `admin_comments` varchar(600) COLLATE utf8_unicode_ci NOT NULL DEFAULT '',
    `created` datetime NOT NULL,
    `modified` datetime DEFAULT NULL,
    `event_type_id` smallint(5) unsigned NOT NULL,
    `created_by_id` smallint(5) unsigned NOT NULL,
    `anonymous_judge_id` smallint(5) unsigned DEFAULT NULL,
    `anonymous_submitter_id` smallint(5) unsigned DEFAULT NULL,
    `cancellation_reason_id` smallint(5) unsigned DEFAULT NULL,
    `modified_by_id` smallint(5) unsigned DEFAULT NULL,
    `submission_date` date NOT NULL,
    `submission_time` time DEFAULT NULL,
    `deleted` tinyint(3) unsigned NOT NULL DEFAULT '0',
    PRIMARY KEY (`id`),
    KEY `IDX_5387574A82F1BAF4` (`language_id`),
    KEY `IDX_5387574AB7D66194` (`judge_id`),
    KEY `IDX_5387574A919E5513` (`submitter_id`),
    KEY `IDX_5387574A64D218E` (`location_id`),
    KEY `IDX_5387574AFF915C63` (`anonymous_judge_id`),
    KEY `IDX_5387574A61A31DAE` (`anonymous_submitter_id`),
    KEY `IDX_5387574A8453C906` (`cancellation_reason_id`),
    KEY `IDX_5387574AB03A8386` (`created_by_id`),
    KEY `IDX_5387574A99049ECE` (`modified_by_id`),
    KEY `IDX_5387574A401B253C` (`event_type_id`),
    KEY `docket_idx` (`docket`),
    CONSTRAINT `FK_5387574A401B253C` FOREIGN KEY (`event_type_id`) REFERENCES `event_types` (`id`),
    CONSTRAINT `FK_5387574A61A31DAE` FOREIGN KEY (`anonymous_submitter_id`) REFERENCES `hats` (`id`),
    CONSTRAINT `FK_5387574A64D218E` FOREIGN KEY (`location_id`) REFERENCES `locations` (`id`),
    CONSTRAINT `FK_5387574A82F1BAF4` FOREIGN KEY (`language_id`) REFERENCES `languages` (`id`),
    CONSTRAINT `FK_5387574A8453C906` FOREIGN KEY (`cancellation_reason_id`) REFERENCES `cancellation_reasons` (`id`),
    CONSTRAINT `FK_5387574A919E5513` FOREIGN KEY (`submitter_id`) REFERENCES `people` (`id`),
    CONSTRAINT `FK_5387574A99049ECE` FOREIGN KEY (`modified_by_id`) REFERENCES `users` (`id`),
    CONSTRAINT `FK_5387574AB03A8386` FOREIGN KEY (`created_by_id`) REFERENCES `users` (`id`),
    CONSTRAINT `FK_5387574AB7D66194` FOREIGN KEY (`judge_id`) REFERENCES `judges` (`id`),
    CONSTRAINT `FK_5387574AFF915C63` FOREIGN KEY (`anonymous_judge_id`) REFERENCES `anonymous_judges` (`id`)
  ) ENGINE=InnoDB AUTO_INCREMENT=122912 DEFAULT CHARSET=utf8 COLLATE=utf8_unicode_ci

An Event has attributes that include, among other things: date, time, language, judge, docket number, location, event-type, and the reason for a possible cancellation.

The date and time columns refer to the date and time the event is scheduled to take place. They are stored in separate fields rather than a single timestamp for a reason: sometimes users need to create a date with a null time because they know the date, but not the time at which the event will take place, so they need to create a placeholder event and add the time later.

The end_time is a field that users with maximum adminstrative privileges can enable or disable. When enabled, it is used to store the time at which an event actually ended – not a speculative or aspirational time at which it is hoped or predicted that it will end. This feature was added when the interpreters in the Southern District of New York were asked to keep track of the hours and minutes spent on interpreting assignments, in addition to existing reporting requirements. It has proven useful, however, as an indicator of whether an event is over or still in progress. On busy days it helps managers of the Interpreters schedule keep track of where interpreters are (or at least, where they are not).

The point of the language_id column is self-evident. Note that on some rare occasions, a single court proceeding requires interpreters of more than one language. In such cases a separate event is created for each language.

The judge_id field is set to a non-null value when the identity of the judge is significant, which normally means it’s a District Court Judge as opposed to Magistrate. Many proceedings take place before the on-duty Magistrate, and InterpretersOffice does not bother to record the Magistrate’s identity because it is basically random and does not help to identify the case in a longitudinal sense. In case of a generic or anonymous judge, the anonymous_judge_id field is populated instead. It’s worth noting that one and only one of either the judge_id or the anonymous_judge_id must be null. We should also point out that the Judge entity is a subclass of Person with a couple of peculiar properties, such as a default InterpretersOffice\Entity\Location and a InterpretersOffice\Entity\JudgeFlavor

The docket column contains a docket number (string) in a consistent format that is enforced by the application.

The location_id column refers to the place where the event takes place – for in-court proceedings, a courtroom.

The event-type (represented by the event_type_id column) refers to the name of the court proceeding (e.g., pretrial conference) or ancillary event (e.g., attorney-client interview.)

Belated cancellation is such a common occurrence that InterpretersOffice also treats the reasons for a cancellation as an attribute cancellation_reason_id, which is left as null if not applicable.

The comments and admin_comments are for just that: writing any comments or observations that are relevant to the event. The difference is that comments are intended to be viewed by anyone who has read access to the interpreters schedule, i.e., any court employee and any contract interpreter who is on site; admin_comments are intended only for the eyes of Interpreters Office staff.

The columns submitter_id and anonymous_submitter_id refer to the person (or type of person) who submitted the request for an interpreter. The former points to a record in the people table; it is populated when the identity of the person is required (more about that later). The latter points to the generic type or job description of person submitting the request, and is used when the identity of the person making the request is not of interest. It points to a record in the hats table. The reasoning here is that when a request is submitted for certain types of event-types, such as in-court proceedings and USPO PSI interviews, the identity of the submitter is useful, if not essential, in order to carry out the assignment or negotiate details around it. In other cases – e.g., when things are busy and the phone is ringing with requests for interpreters for intake interviews for new arrests – the name of the person calling is not particularly important, only the department – e.g., Pretrial or Magistrates.

As with the judge_id and anonymous_judge_id columns, one and only one of either the submitter_id and anonymous_submitter_id must be null. Note that in both of these cases, in addition to the validation rules applied by the form handling process, the InterpretersOffice\Entity\Event class has a a Doctrine lifecycle callback to enforce this constraint.

The columns created, modified, created_by_id, and modified_by_id are metadata columns for recording who created the event record and when, and who was the last user to update it and when. Note that the foreign-key relationship of created_by_id and modified_by_id is with the users table, rather than with people. The reason is that the data is always manipulated by users, meaning people who are both authenticated and authorized, whereas a request for an interpreter can be and often is received from a person who does not have any user account in this system. (Of course, the users and people tables have a foreign-key relationship. A user is a person, but not necessarily vice-versa. )

The column deleted is essentially a boolean flag indicating whether the record has been deleted by a user – soft deletion, in other words. This feature was added by popular demand. At present there is no facility for viewing or undeleting records that have been soft-deleted. It merely prevents users from physically deleting event records and provides a way to restore them, if only by means of the command-line client.

entities in a 1-M relationship with events

anonymous_judges, judges, event_types, languages, locations, cancellation_reasons, people, hats and users are all tables (mapped to entity classes) with which the events table has a one-to-many relationship. As mentioned earlier, an Event entity has either a named judge or an anonymous, generic judge; it also has a location where it takes place (possibly null), a reason why it was cancelled (cancellation_reason_id also possibly null), a language, and an event-type. It also has either a named or anonymous/generic submitter. The former is related to the people table; the latter, to the hats table.

At this writing, the hats, cancellation_reasons and anonymous_judges cannot be updated by the user; they are basically hard-coded at installation time (this may change in a future version). The remaining entities are per force exposed to the users because they need to maintain their own lists of languages, locations, judges, event-types, etc., using interfaces provided by InterpretersOffice. These end up populating the options of the select elements of the form used for creating and updating events.

Some entities with which the InterpretersOffice\Entity\Event has a 1-M relationship likewise have 1-M relationships with other entities. One example is the InterpretersOffice\Entity\Location, which has an attribute location_type which is represented by the InterpretersOffice\Entity\LocationType entity, providing a basic taxonomy for location entities. A location can be one of several types:

MariaDB [office]> select * from location_types;
+----+--------------------------+----------+
| id | type                     | comments |
+----+--------------------------+----------+
|  1 | courtroom                |          |
|  2 | jail                     |          |
|  3 | holding cell             |          |
|  4 | US Probation office      |          |
|  5 | Pretrial Services office |          |
|  6 | interpreters office      |          |
|  7 | courthouse               |          |
|  8 | public area              |          |
+----+--------------------------+----------+

The Location entity has a self-referencing foreign key called parent_location_id. This is to say that up to one level of nesting is supported: a location can be in another (parent) location, or it can be a parent location and have no parent. This is useful for modeling courtrooms and courthouses.

Similarly to the Location entity, InterpretersOffice\Entity\EventType has a property that is itself represented by the entity InterpretersOffice\Entity\EventCategory, a minimal class mapped to the event_categories data table,which is also populated when the database is first initialized and never modified thereafter. An event-type has one of three categories: “in”, “out”, or “not applicable.” Respectively, these mean in-court, as in an official on-the-record proceeding; out-of-court, as in ancillary events like PSI interviews and attorney-client meetings; and neither of the above, which is applicable in less frequent cases such as document translation. One of the administrative reasons for tracking this datum in federal court is that the Administrative Office of the US Courts requires District Courts to report it.

There are other examples of this type of entity relationship, but this should suffice as an overview. For further details the source code for the entity classes in the application’s main module is a good resource.

entities in a M-M relationship with events

One of the most important pieces of the model is of course the interpreter. An event can have multiple interpreters, and interpreters can be assigned, over time, to thousands of events. Accordingly, there is an association class InterpretersOffice\Entity\InterpreterEvent which is mapped to a join table called interpreters_events. In addition to the IDs of the interpreter and the event, this table holds metadata about the assignment – who assigned the interpreter to the event, and when – as well as a field indicating whether the interpreter has been sent a confirmation notice via email.

For statistical reporting and other administrative purposes, a court interpreting “event” is frequently a misnomer. What we’re really talking about, in many cases, is interpreter-events. A sentencing hearing involving one non-English language in front of a judge is represented by one row in the events table, but there may well be two rows in interpreters_events that are related to that event record. In such a case, for reporting purposes, that single court proceeding is counted as two interpreter-events, not one.

Another critically important element of the model – the raison d’être of the entire court interpreting profession – is the person who does not speak the language of the Court and for whom the interpreters are interpreting. For lack of a better term, InterpretersOffice labels them defendants (and stores their surnames and given names in an eponymous table). In federal court interpreting, the non-English speaker is usually, though not always, a defendant in a criminal proceeding. Although they are in fact people, the data about them is stored in a table separate from the people table for a couple of good reasons, the most compelling of which is that unlike systems used by the immigration or prison authorities, InterpretersOffice does not try to track the actual identity of defendants. The names of defendants involved in court interpreted events are primarily used as an attribute to help distinguish one event from another and avoid under- or over-counting. We therefore “recycle” names when they recur, rather than trying to maintain a separate record for each and every individual for whom the interpreters interpret.

Hereagain, as with the interpreters, an event can have multiple defendants and defendants are nearly always associated with multiple events. Hence the many-to-many relationship. The defendants_events table has only the two columns event_id and defendant_id and no corresponding association class. The $defendants property is simply mapped in the InterpretersOffice\Entity\Event class as a many-to-many relationship with the InterpretersOffice\Entity\Defendant entity.

people, interpreters and languages

Interpreters have one or more working languages, and most of our languages are associated with more than one interpreter. Consequently, the interpreter-language is modeled by the InterpretersOffice\Entity\InterpreterLanguage entity, which is mapped to an interpreters_languages table. The InterpreterLanguage entity in turn has a 1-M relationship with a InterpretersOffice\Entity\LanguageCredential entity whose underlying table is initialized at setup time, and currently cannot be updated by the user. The purpose of tracking the LanguageCredential in the federal court system is that the AO uses it to set compensation levels for contract interpreters, and also requires this data in quarterly reports.

The InterpretersOffice\Entity\Interpreter entity is a subclass of InterpretersOffice\Entity\Person. This is implemented using Doctrine’s class table inheritance.

people and hats, users and roles

A user account “has” an associated person and the corresponding entity classes are designed accordingly. This is to say that a user is always associated with a person, but not vice-versa. A user entity “has” a role entity, the hard-coded roles being “submitter”, “administrator”, “manager” and “staff”. The “submitter” role is for users who are authorized only to create and manage their requests for interpreting services, and read (but not edit) the Interpreters’ schedule. The “administrator” role can do any administrative action involving the interpreters data and application configuration. The “manager” role can do nearly everything the “administrator” can do, the exceptions being a few advanced administrative actions and escalation of user privileges beyond its own level. The “staff” role is the least privileged non-submitter role, intended for cases such as interns or assistants assigned to the Interpreters office on a temporary basis.

A user account is associated with a InterpretersOffice\Entity\Person, as noted above, and the Person entity has a particular InterpretersOffice\Entity\Hat. Primarily used for classifying and identifying people for contact management purposes, some Hat entities are bound (by foreign key relationship) to a particular InterpretersOffice\Entity\Role. The point is to constrain certain user-roles to people with certain functions (or hats, if you will) in the organization. Thus a user who has the “submitter” role has to be (associated with) a Person entity whose hat is either “Courtroom Deputy,” “Law Clerk”, “USPO”, or “Pretrial Services Officer.”

Here is what the data in the roles and hats tables looks like:


    MariaDB [office]> select * from roles;
    +----+---------------+----------+
    | id | name          | comments |
    +----+---------------+----------+
    |  1 | submitter     |          |
    |  2 | manager       |          |
    |  3 | administrator |          |
    |  4 | staff         |          |
    +----+---------------+----------+
    4 rows in set (0.00 sec)

    MariaDB [office]> select * from hats;
    +----+---------+----------------------------+-----------+-----------------+
    | id | role_id | name                       | anonymity | is_judges_staff |
    +----+---------+----------------------------+-----------+-----------------+
    |  1 |       2 | staff court interpreter    |         0 |               0 |
    |  2 |       2 | Interpreters Office staff  |         0 |               0 |
    |  3 |    NULL | contract court interpreter |         0 |               0 |
    |  4 |    NULL | defense attorney           |         2 |               0 |
    |  5 |    NULL | AUSA                       |         2 |               0 |
    |  6 |       1 | Courtroom Deputy           |         0 |               1 |
    |  7 |       1 | Law Clerk                  |         0 |               1 |
    |  8 |       1 | USPO                       |         0 |               0 |
    |  9 |       1 | Pretrial Services Officer  |         0 |               0 |
    | 10 |    NULL | paralegal                  |         2 |               0 |
    | 11 |    NULL | staff, US Attorneys Office |         2 |               0 |
    | 12 |    NULL | Pretrial                   |         1 |               0 |
    | 13 |    NULL | Magistrates                |         1 |               0 |
    | 14 |    NULL | Judge                      |         0 |               0 |
    +----+---------+----------------------------+-----------+-----------------+
    14 rows in set (0.00 sec)



The is_judges_staff column expresses the fact that some users are associated with people, hence Hats, that report to a particular Judge – and in rare cases, more than one judge. And Judges invariably have multiple clerks, i.e., Law Clerks and/or a Courtroom Deputy Clerk. Therefore you have a many-to-many relationship, which is represented by a clerks_judges join table.

The anonymity column determines certain input validation rules applied to the HTML form used for creating and updating Event entities; the values 0, 1 and 2 are assigned to class constants. The 0 means that if the submitter of the request has this Hat, the submitter cannot be anonymous, but must be identified as a Person. A value of 1 means the submitter is never identified; a value of 2 means identification of the individual Person is optional. To summarize: 0 means no anonymity; 1 means yes anonymity; 2 means anonymity optional.

Complicated? Yes it is. A great deal of thought has gone into this design and, complicated though it is, this was the simplest and cleanest model I could come up with to separate and manage these various concepts and their relationships.

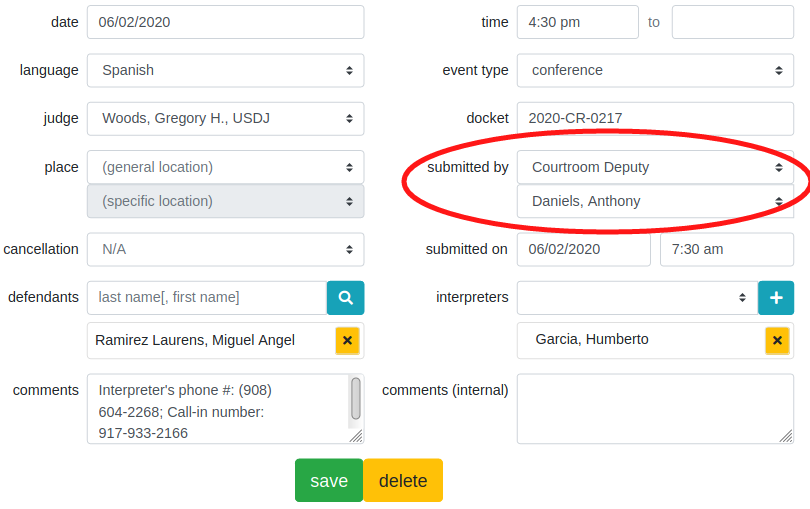

A screenshot and a bit of digression may help to visualize how some of this works from the front end point of view.

There are two form controls adjacent to the label “submitted by.” The first is for the Hat, the second is for the Person. Of course, the latter is repopulated dynamically by a Javascript listener attached to the change event on the Hat element; if it detects a non-anonymous Hat, it fetches via xhr the Person entities, formatted as JSON, that have the currently selected Hat. The anonymity values discussed above are transmitted from the server as data attributes of the Hat select menu’s option elements, as a hint to Javascript as to when the Person select menu should be enabled or disabled.

When the form is submitted and validated, server-side logic decides whether the submitter – the entity who asked for a court interpreter – should be saved as a specific Person or a generic Hat. In other words, ultimately, whether the submitter_id or the anonymous_submitter_id column will contain a non-null value.

The handling of named Judges versus generic, anonymous judges is similar.

The foregoing discussion is far from exhaustive; it deals with most of the entities found in the main InterpretersOffice module, which are in the InterpretersOffice\Entity namespace. There are other entity classes in the InterpretersOffice\Requests, InterpretersOffice\Admin\Notes, and InterpretersOffice\Admin\Rotation modules. The source code for all of these modules can be browsed on Github.
